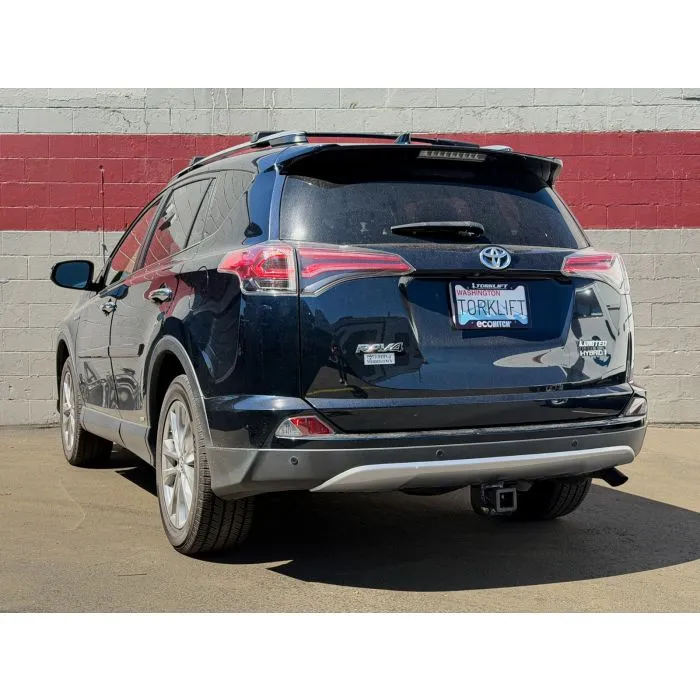

Our Rav4 trailer hitch by EcoHitch® fits the 2013-2018 model. This Toyota Rav4 trailer hitch features our Hidden Design which means only the receiver is visible– no large, bulky metal hitch hanging down low under your SUV. This Rav4 tow hitch is rated at 525 pounds tongue weight at the trailer ball and 3,500 pounds towing.**
2013 RAV4 trailer hitch
2014 RAV4 trailer hitch
2015 RAV4 trailer hitch
2016 RAV4 trailer hitch
2017 RAV4 trailer hitch
2018 RAV4 trailer hitch
2013 – 2018 Rav4 hitch:
Trailer Hitch Style

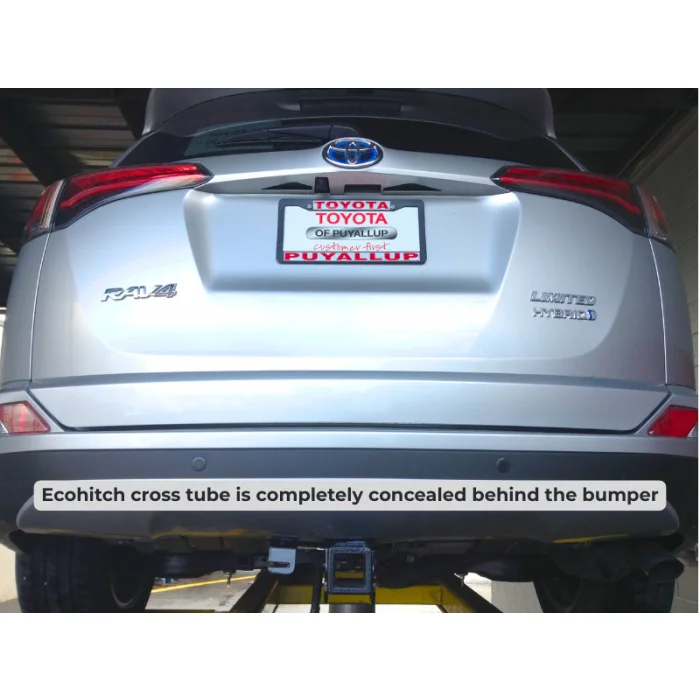

Our EcoHitch® line comes in three styles: Stealth, Hidden and Invisi. The Toyota Rav4 trailer hitch features our Hidden Design. All EcoHitch® models are precision manufactured to have hidden cross tubes when installed. The only part of this hidden hitch that is ever visible is the receiver when in use and it has a higher level of ground clearance than other hitches available. What it boils down to? No jumbo metal hitch hanging down low behind and below your rear bumper.
Hitch Receiver Size
This Toyota Rav4 trailer hitch is made to accommodate your Rav4 hitch bike rack, cargo trays and hauling needs. It features a 2 inch receiver opening which is the most common size for all your carrying needs. However, we also have it available in the less common 1 ¼-inch option as well.
It was designed with simplicity in mind. It features a 100 percent bolt on installation which means you don’t drill into your frame at all – we use existing mounting locations that work with the design of your Rav4. This leads us to another reason you want this hitch – it does not interrupt the aerodynamics of your vehicle’s design because it is tucked behind your bumper and prevents you from having to mount your bikes and other cargo on your roof.
EcoHitch® trailer hitch strength
This Toyota Rav4 trailer hitch is rated at 525 pounds tongue weight at the trailer ball and 3,500 pounds towing weight.** It is coated in high impact powder coat featuring our Chasm Black finish. The powder coating process for our EcoHitch® is time intensive and includes sand blasting which is something other manufacturers fail to do. All our hitches are sand blasted to ensure the metal is clean and ensures the strongest bond between the metal and the powder coating to allow for long lasting durability. The material used in this Rav4 trailer hitch can include a combination of up to three 100% recycled and recyclable materials including aerospace grade aluminum, stainless steel and steel.
American Made with a REAL Warranty
This Toyota Rav4 trailer hitch is proudly made in America and backed by our Legendary Lifetime Warranty. We do not mess around with this warranty. When you call us you get an actual person who is knowledgeable about the product and can walk you through an installation if you choose to install this hitch yourself.
**Although your EcoHitch® tongue weight and tow weight rating might be exceedingly high – this is because we build our hitches to withstand all kinds of beatings – your vehicle’s towing capacity could be lower. Please consult your vehicle’s owners manual to determine your factory tow weight rating and never exceed it. No aftermarket products can increase your factory tow weight rating. If your vehicle's tow rating is less than the rated towing capacity on your EcoHitch® trailer hitch, your trailer hitch capacity is limited to your vehicle's factory rated towing capacity. Please check your owner’s manual to confirm your vehicle is rated to tow. As a general rule, the use of extensions, hitch adapters, bike racks, cargo trays and other towing accessories can reduce the tongue weight capacity / vertical load capacity of your vehicle’s receiver hitch. When extensions, hitch adapters, bike racks, cargo trays and other towing accessories are added to your receiver hitch and are under 12” in length, it reduces load capacity by 25 percent, and if it is over 12” it reduces load capacity by 50 percent.
*Depending on the application, the product can include a combination of up to three qualified materials
|Part #||Bare Weight|
The EcoHitch for the Toyota RAV4 (2016 model year only, 2013-2015 do not require trimming) requires minor trimming of the plastic at the bottom edge of the bumper.
*WARNING* Your vehicle may have a lower tow rating than this trailer hitch. If your vehicle's tow rating is less than the rated towing capacity on your Torklift Central trailer hitch, your trailer hitch capacity is limited to your vehicle's factory rated towing capacity.
EcoHitch Installation on 2017 Toyota RAV4
EcoHitch Installation on RAV4
This video is intended to give a general overview of how this hitch is installed. For more specific information or details, please refer to the written instructions.
