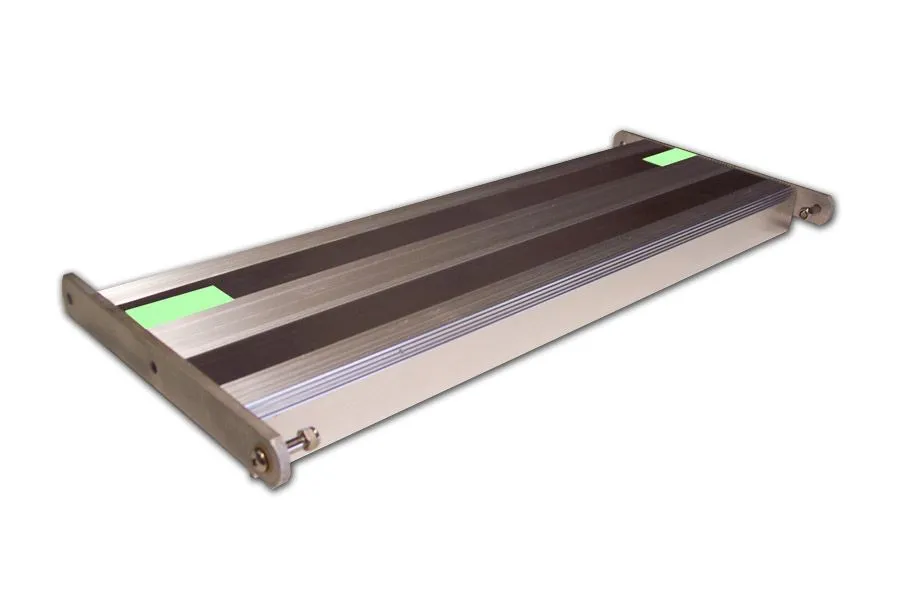

The Add-A-Step is the easiest way to extend the height of your GLOWSTEP REVOLUTION®. You can easily add or remove steps because the truck camper step is bushing bolted. It can be as short as three steps or as high as six steps.
Part number: A8001
This kit ships complete. Kit includes bolt/accessory kits
Do you find that at certain campgrounds that are incredibly angled or uneven that your steps would be absolutely perfect if there was just one more step? Torklift has your back with the Add-A-Step accessory kit. Easy to install, the Add-A-Step still has the same original design as the GLOWSTEP REVOLUTION® steps, it just gives you the ability to add an extra step when you need it! The multi-link hinge design of these RV steps accommodates any space constraint, so it doesn’t matter how close you park to structures, trees, service bays or inside of a storage facility – you’re still able to use these trailer steps.
To maximize a lifetime of smooth action and ease of use, the RV steps are assembled carefully by hand and adjusted to precise torque. The unique bushing bearing design is used on each side of every hinge point on the steps, preventing the step hinges from coming loose over time. The bushings act as a bearing surface that can handle significant tension without over-stiffening the step configuration, a common problem found on rusting factory steps. Due to these features, Torklift's GLOWSTEP REVOLUTION® line of RV steps guarantee longevity, durability and quality.
*Accessory only, steps and bracket sold separately. To purchase your GLOWSTEP REVOLUTION® steps, visit here.
Features of the GLOWSTEP REVOLUTION® Add-A-Step Include:
Patented:
U.S. 11,807,189; 11,332,075; 11, 292,391; 9,527,448
CA 2,929,532; 3,081,167; 3,081,170
Additional Online Part Numbers:
TRKA8001 Meyer, 14-1778 Keystone
|
GLOWSTEP REVOLUTION®
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Description / Part Number | Width between factory mounting brackets (A) | Height from top of step opening to ground (B) | Height from top of step opening to bottom of stored steps (C) | Step Tread Depth x Width | Weight Capacity | Notes | |||
|
Add-A-Step (for A8002-A8005) |
27.5" | N/A | N/A | N/A | N/A | ††† | |||
| 2 Step Part Number: A8002 |
27.5" | 18.5" to 24" | 11.5" to 12.5" | 8"d x 22.5"w | 375lbs |
††† | |||
| 3 Step Part Number: A8003 |
27.5" | 25.5" to 32" | 13.75" to 14.75" | 8"d x 22.5"w | 375lbs |
††† | |||
| 4 Step Part Number: A8004 |
27.5" | 32.5" to 40" | 16" to 17" | 8"d x 22.5"w | 375lbs |
††† | |||
| 5 Step Part Number: A8005 |
27.5" | 39.5" to 48" | 18.25" to 19.25" | 8"d x 22.5"w | 325lbs |
††† | |||
| 6 Step Part Number: A8006 |
27.5" | 46.5" to 56" | 20.5" to 21.5" | 8"d x 22.5"w | 325lbs |
††† |
|||
| Add-A-Step (For A8102-A8105) Part Number: A8101B | 25" | N/A | N/A | N/A | N/A | ††† | |||
| 2 Step Part Number: A8102 |
25-25.5" | 18.5" to 24" | 11.5" to 12.5" | 8"d x 22.5"w | 375lbs | ††† | |||
| 3 Step Part Number: A8103 |
25-25.5" | 25.5" to 32" | 13.75" to 14.75" | 8"d x 22.5"w | 375lbs | ††† | |||
| 4 Step Part Number: A8104 |
25-25.5" | 32.5" to 40" | 16" to 17" | 8"d x 22.5"w | 375lbs | ††† | |||
| 5 Step Part Number: A8105 |
25-25.5" | 39.5" to 48" | 18.25" to 19.25" | 8"d x 22.5"w | 325lbs | ††† | |||
| 6 Step Part Number: A8106 |
25-25.5" | 46.5" to 56" | 20.5" to 21.5" | 8"d x 22.5"w | 325lbs | ††† | |||
|
† Do not use Add-A-Step Kit to convert a six-step to a seven-step. †† All Terrain Landing Gear not included. ††† With use of Torklift GlowGuide. Otherwise 2-4step MAX CAP 350lbs / 5-6 MAX CAP 300lbs. * The GLOWSTEP REVOLUTION® is available from two to six steps. The six step is specifically available for side-entry truck campers that have a larger opening to the ground. Most travel trailers, toy haulers and 5th wheels will only require two to five step applications. **GlowGuide handrail works with the 6-step GLOWSTEP REVOLUTION® but must be installed on the second step from the bottom. |
|||||||||
How do I choose the right GlowStep Revolution size for my RV?
Measure the width between your factory mounting brackets and the height from the top of the step opening to the ground, then match those to the measurement guide to select a 2–6 step model.
Will the GlowStep Revolution work in tight spaces or next to obstacles?
Yes, its multi-link hinge deploys in as little as 12 inches of clearance, so you can park beside structures, trees, or other RVs without hassle.
How stable are these steps compared to factory steps?
The patented earth-to-RV, ground-supported design eliminates the unsafe "diving board" bounce for rock-solid stability without booster stools.
Can the steps level on uneven terrain?
Yes, there’s 7 inches of precision vertical adjustment with 3 upper positions, plus 5 lower positions when paired with All Terrain Landing Gear.
What is the weight capacity?
With the Torklift GlowGuide handrail, capacity is 375 lbs (2–4 steps) and 325 lbs (5–6 steps); without it, 350 lbs (2–4) and 300 lbs (5–6).
Do these steps help keep dirt out of my RV?
Yes. The steps store in the step well under your door instead of inside your door, and the optional DirtDestroyer shoe brush easily attaches to the steps so that shoes can be cleaned prior to entering the RV.
Is installation a direct replacement for my factory steps?
Yes. GlowStep Revolution bolts to existing step-well mounting points with no drilling into your floor, protecting against water damage and structural changes.
What comfort and safety features are included?
You get a home-like 7.5-inch riser, SureGrip non-slip treads, SmartStep impact absorption, and glow-in-the-dark step surfaces for up to 10 hours.
What materials and warranty back the system?
It’s built from 100% aircraft-grade aluminum and stainless steel for rust-free durability and is backed by Torklift’s legendary lifetime warranty, made in the USA.
Will these steps improve ground clearance when stored?
Yes. They stow compactly in the step well, higher than most factory steps, and lock securely for travel.
