Find Your Part Number

Step Measurement Guide

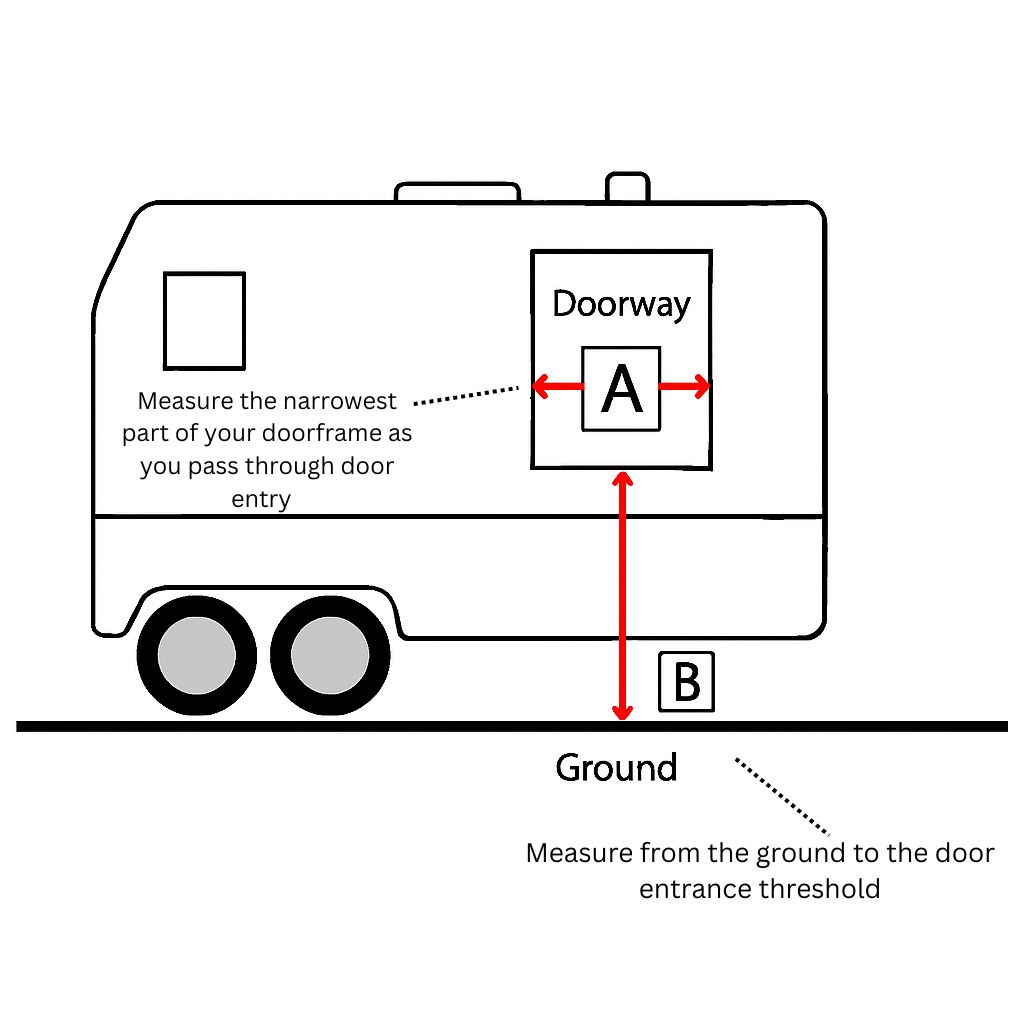

Figure 1: Doorway and exterior measurement — shows how to measure across your RV door frame and threshold to confirm step width and mounting position.

Figure 2: Interior step (stored) measurement — identifies where to measure inside the doorway for clearance and proper step fit when folded in.

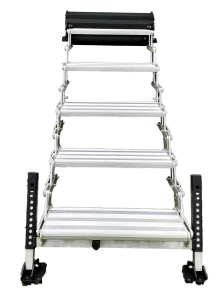

GlowStep REVOLUTION® Uprising Step System
Description / Part Number	Narrowest part of doorway frame entrance (A)	Height from Ground to Bottom of Door Threshold (B)	Step Tread Width	Weight Capacity	Notes
3-Step Models
24" – A9103	24"	19-7/8"–27-3/8"	8"d x 18.5"w	375 lbs	†††
26" – A9303	26"	19-7/8"–27-3/8"	8"d x 20.5"w	375 lbs	†††
28" – A9003	28"	19-7/8"–27-3/8"	8"d x 22.5"w	375 lbs	†††
30" – A9403	30"	19-7/8"–27-3/8"	8" d x 22.5"w	375 lbs	†††

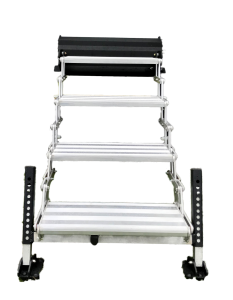

4-Step Models
24" – A9104	24"	27-3/8"–34-7/8"	8"d x 18.5"w	375 lbs	†††
26" – A9304	26"	27-3/8"–34-7/8"	8"d x 20.5"W	375 lbs	†††
28" – A9004	28"	27-3/8"–34-7/8"	8"d x 22.5"w	375 lbs	†††
30" – A9404	30"	27-3/8"–34-7/8"	8"d x 22.5"w	375 lbs	†††

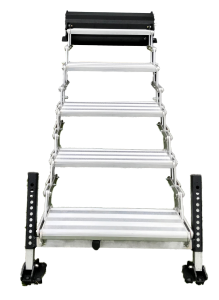

5-Step Models
24" – A9105	24"	34-7/8"–42-3/8"	8"d x 18.5"w	325 lbs	†††
26" – A9305	26"	34-7/8"–42-3/8"	8"d x 20.5"w	325 lbs	†††
28" – A9005	28"	34-7/8"–42-3/8"	8"d x 22.5"W	325 lbs	†††
30" – A9405	30"	34-7/8"–42-3/8"	8"d x 22.5"W	325 lbs	†††
6-Step Models
24" – A9106	24"	42-3/8"–49-7/8"	8"d x 18.5"w	300 lbs	†††
26" – A9306	26"	42-3/8"–49-7/8"	8"d x 20.5"w	300 lbs	†††
28" – A9006	28"	42-3/8"–49-7/8"	8"d x 22.5"w	300 lbs	†††
30" – A9406	30"	42-3/8"–49-7/8"	8"d x 22.5"w	300 lbs	†††

^††† With use of Torklift GlowGuide. Otherwise, 3–4 step MAX CAP 350 lbs / 5–6 step MAX CAP 300 lbs.



Stop letting tight spaces control your RV experience. Upgrade to the only RV step system that deploys anywhere, removes completely in seconds, adapts to anything, and protects your investment for life.

Works In Impossible Spaces - End Deployment Frustration: Multi-link hinge extends in cramped quarters as tight as 12" where "drawbridge" steps can require over 5 feet. Park confidently next to structures, trees, service bays, or storage facilities. Never locked out of your RV again with these adjustable RV steps designed for tight spaces.

The Only Step That Grows With You: Only RV entry steps with patented built-in booster that transforms your 3-step into 4-step, 4-step into 5-step, 5-step into 6-step with one lever flip. 15" total vertical adjustment handles any terrain or RV height changes. Modular adaptability allows adding or removing steps over time and transfers to your next RV - protected by lifetime warranty.

Complete Removal In Seconds - No Tools Required: Revolutionary keyway disconnect system allows full removal in seconds - no tools, latches, or pins required. Remove completely for zero footprint in tight storage, seasonal storage, theft prevention, or service access. Reinstall instantly when needed. These folding RV steps redefine space flexibility.

GlowStep REVOLUTION® Uprising Full Description

Why These RV Steps Work in Tight Spaces

Works In Impossible Spaces - End Deployment Frustration

• Deploy in Just 12" Clearance: Multi-link hinge design extends in cramped quarters as tight as 12" where other RV stairs require over 5 feet of clearance to lower and use the step. Park confidently next to structures, trees, service bays, or storage facilities. No more being locked out of your RV in tight campgrounds or storage facilities.
• Never Blocked Again: Unlike overhead drawbridge steps that leave you stranded when space is tight, access your RV anytime - even just to grab groceries in a crowded parking lot.

Adjustable RV Steps That Grow With You

Built-In Adaptability That Expands With Your RV

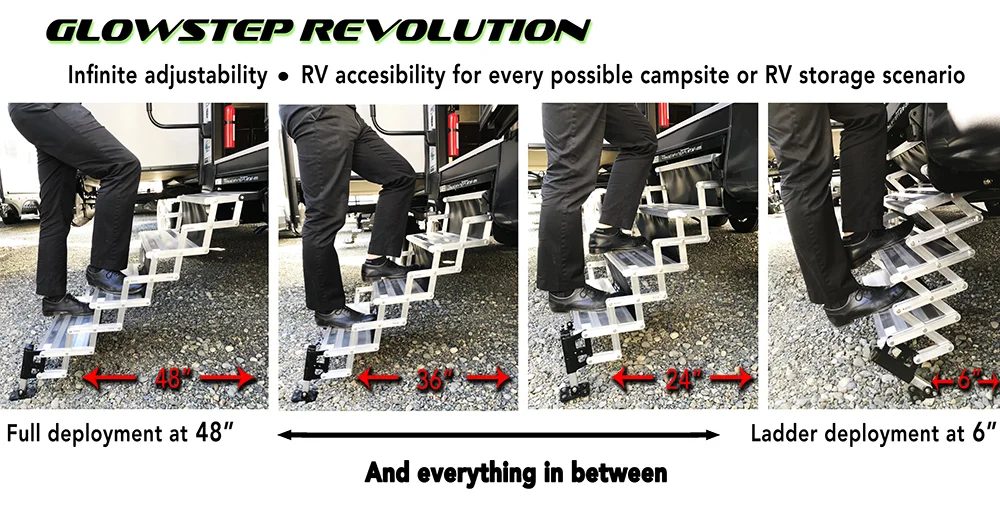

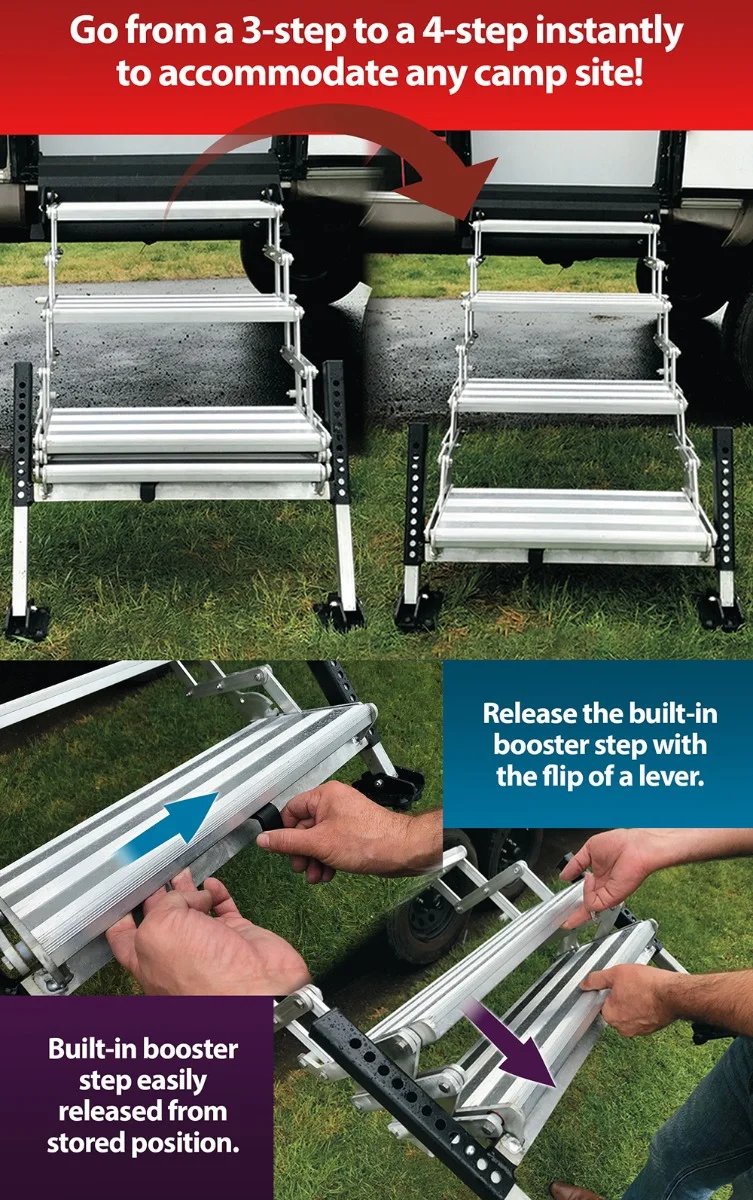

• Patented Infinite Step Configuration: The only RV camper steps in the world with a patented built-in booster step that lets you increase or reduce the number of steps with just the flip of a lever. Your 3-step system becomes a 4-step when the booster is deployed, a 4-step becomes a 5-step, and a 5-step becomes a 6-step configuration. Full deployment ranges from 48 inches down to less than 12 inches.
• 15 Inches of Total Vertical Adjustment: Featuring 7.5 inches of precision adjustment with the booster step plus 7.5 inches with the All Terrain Landing Gear - accommodating any terrain or RV height changes. These adjustable RV steps deliver complete flexibility for every camping setup.
• The Only Doorway-Mounted Step System That Grows With You: Unlike any other doorway-mounted RV step, the GlowStep REVOLUTION Uprising's exclusive bushing bolted design allows you to add or remove steps over time. Raise or lower your RV? Change the step configuration in minutes without buying a completely new system.

Complete Step Removal in Seconds

Instant Tool-Free Detachment for Maximum Flexibility

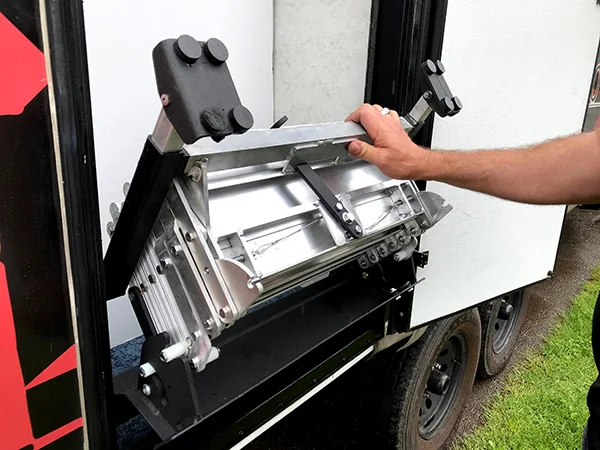

• Revolutionary Keyway Disconnect System: The only RV step system with pickup truck tailgate-style keyway alignment that allows complete removal of the entire step system in seconds - no tools, latches, or pins required. Simply lift and disconnect using the precision keyway that aligns with pivot arms on either side.
• Ultimate Space Flexibility: When you need zero space footprint - remove the steps completely. Perfect for tight storage facilities, seasonal storage, deck system compatibility, theft prevention, or complete RV service access. Reinstall just as quickly when ready to use.
• Beyond Competitor Capabilities: While others require tools or complex latches for partial removal, our keyway system provides instant, tool-free complete disconnection that's easier than any competitor solution.

Protects Your RV Investment & Transfers To Next RV

Designed to Move With You and Protect Your Investment

• Smart Installation - Door Frame Mounting: Installs to the sturdiest part of your RV entrance - the door frame - not just vinyl flooring. Avoids water damage vulnerability and maintains your RV's value and integrity. No risk of door alignment problems that plague other installations.
• Smart RV Trading Strategy: Most owners save their original factory step when upgrading, then reinstall it when selling their RV. Your GlowStep REVOLUTION Uprising RV steps transfers to your next trailer, protecting your investment. With non-deteriorating metals and a lifetime warranty, this RV entry step system serves multiple RVs throughout your camping lifetime.
• Internal Storage & Locking: Steps deploy and store inside your RV doorway with a locking mechanism and quick-release switch. Protected from road elements during travel.

Proven Safety & Stability

Ground-Supported Stability You Can Trust

• Earth-to-RV Ground Connection: Experience rock-solid stability with our revolutionary ground-supported design. No more dangerous shaking, bouncing, or "diving board" feeling that plagues factory steps. Your family can safely enter and exit anywhere, anytime with these stable RV entry steps.
• Self-Illuminating Safety: Steps glow in the dark for up to 10 hours with just 5 minutes of light exposure - no batteries needed. Never stumble in the dark again.

Superior Construction & Lifetime Durability

Engineered for Long-Term Strength and Smooth Performance

• Aircraft-Grade Materials: 100% lightweight aluminum RV steps and stainless steel construction - completely rust-free unlike factory steel steps.
• Engineered for Silky-Smooth Operation: Our unique bushing bolted bearing design uses precision bushings that act as a bearing surface on every hinge point, delivering effortless deployment and retraction for decades. These bushings handle significant tension without over-stiffening the step configuration - eliminating the binding and grinding common with rusting factory steps. Unlike rivet construction that loosens over time, our stainless steel bolted design allows hinge tension adjustment years into the future.
• Legendary Lifetime Warranty: Backed by our industry-leading warranty and proudly made in the USA

Comfort & Accessibility Features

Ergonomic Design That Feels Like Home

• Home-Like Step Height: Industry's shortest 7.5-inch riser height (like your home staircase) accommodates those with limited mobility and makes these camper stairs incredibly easy to climb.

• SureGrip™ Tread: Built-in non-slip surface extends to the front tip of each tread, eliminating smooth surfaces and jagged holes found on factory steps.
• Eliminates Step Stool Need: Ground connection means no more carrying, storing, or leveling separate booster steps or platforms - these steps for RV's provide everything you need in one system.
• SmartStep Orthopedic Engineering: Designed with your body in mind, SmartStep technology cushions every step while protecting joints - so you stay comfortable season after season. The calibrated impact absorption makes getting in and out of your RV easier, safer, and smoother - no matter your age or mobility.

Complete Step Options

Customizable Configurations and Add-Ons

• Available Accessories: Complete your system with GlowGuide Handrail, SafeStep pet barriers, and DirtDestroyer shoe cleaning attachment.
• 3-6 Step Configurations: Choose the perfect size for your current RV, knowing you can easily modify it for future RVs wtih our modular stairs design.

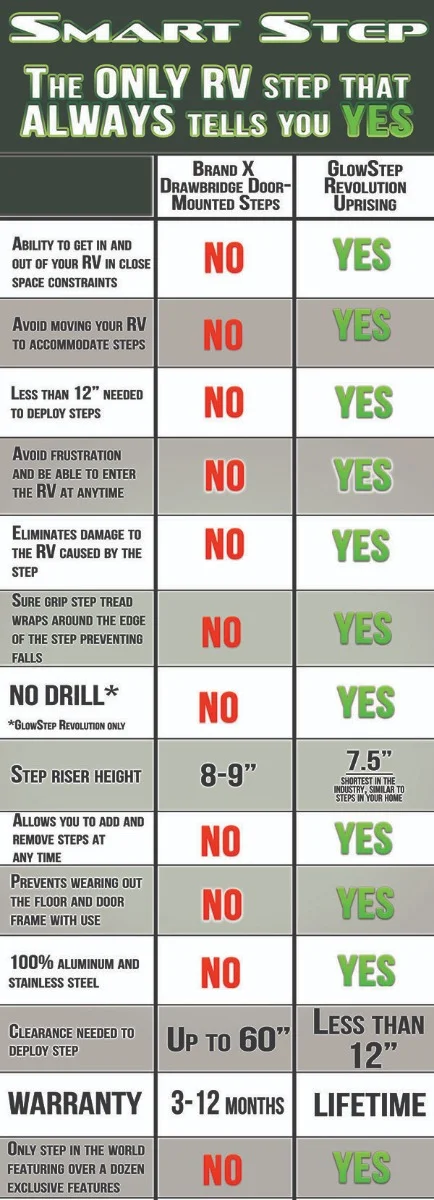

Competitive Advantages

Why GlowStep REVOLUTION Uprising Outperforms Every Other RV Step System

• The Only Doorway Step With True Adaptability: While other doorway-mounted RV step systems lock you into a fixed configuration forever, our modular design adapts to changing needs and transfers between RVs - making it the smartest long-term investment in the industry.
• Unmatched Flexibility Options: Deploy in 12" spaces, remove completely in seconds, or store compactly - no other folding RV steps offers this level of space management versatility.
• Unlike drawbridge-style steps that store overhead and require modification/drilling into your doorway, the GlowStep REVOLUTION® Uprising stores safely underneath in the factory compartment. No risk of warping, damage, or blocking entry when you need quick access.

Stop letting tight spaces control your RV experience. Upgrade to the only RV camper steps that deploys anywhere, removes completely in seconds, adapts to anything, and protects your investment for life.

ORDER NOW and never be blocked out of your RV again!

Patented:

U.S. 11,807,189; 11,332,075; 11, 292,391; 9,527,448

CA 2,929,532; 3,081,167; 3,081,170
