SMARTSTEP® GlowStep Step Specifications
|
6" Deep GlowSteps with 6" x 20" Step Dimensions
| ||||||||
|---|---|---|---|---|---|---|---|---|
| Glow Step | Mounting Bracket Dimensions | Entry Height | Max Weight | |||||
| Add A StepMFG Part Number: A7501 | - | - | - | |||||
| 3 Step MFG Part Number: A7503 |
21.5" wide x 8.56" deep | 23.5" to 30.5" | 350lbs† | |||||
| 4 Step MFG Part Number: A7504 |
21.5" wide x 8.56" deep | 31" to 38" | 350lbs† | |||||
| 5 Step MFG Part Number: A7505 |
21.5" wide x 8.56" deep | 38.5" to 46" | 300lbs† | |||||
| 6 Step MFG Part Number: A7506 |
21.5" wide x 8.56" deep | 46.5" to 54" | 300lbs† | |||||
|
8" Deep GlowSteps with 8" x 20" Step Dimensions
| ||||||||
| Glow Step | Mounting Bracket Dimensions | Entry Height | Max Weight | |||||
| Add A Step MFG Part Number: A7801 |
- | - | - | |||||
| 2 Step MFG Part Number: A7802 |
21.5" wide x 8.56" deep | 16" to 23" | 375lbs†† | |||||
| 3 Step MFG Part Number: A7803 |
21.5" wide x 8.56" deep | 23.5" to 30.5" | 375lbs†† | |||||
| 4 Step MFG Part Number: A7804 |
21.5" wide x 8.56" deep | 31" to 38" | 375lbs†† | |||||
| 5 Step MFG Part Number: A7805 |
21.5" wide x 8.56" deep | 38.5" to 46" | 325lbs†† | |||||
| 6 Step MFG Part Number: A7806 |
21.5" wide x 8.56" deep | 46.5" to 54" | 325lbs†† | |||||
| Footnotes: | ||||||||
| †With use of Torklift GlowGuide. Otherwise 2-4step MAX CAP 325lbs / 5-6 MAX CAP 275lbs | ||||||||
| ††With use of Torklift GlowGuide. Otherwise 2-4step MAX CAP 350lbs / 5-6 MAX CAP 300lbs | ||||||||
| Each 2 - 6 GlowStep Kit includes 1 Universal Surface Mounting Bracket | ||||||||
SMARTSTEP® GlowStep Stow N' Go Step Specifications
|
SMARTSTEP® GlowStep Stow N' Go Step with 20" Wide X 8.56" Mounted Bracket Dimensions
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| SMARTSTEP® GlowStep Stow N' Go Step | Drop/Rise | Step Dimensions | Entry Height | Max Weight | |||||
| Add-A-Step MFG Part Number: A7801 |
N/A | 20" wide x 8.56" deep | N/A | N/A | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 3 Step - Black Bracket MFG Part Number: A7833 |
7.5 | 20" wide x 8.56" deep | 23.5" to 30.5" | 375 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 4 Step - Black bracket MFG Part Number: A7834 |
7.5 | 20" wide x 8.56" deep | 31" to 38" | 375 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 5 Step - Black bracket MFG Part Number: A7835 |
7.5 | 20" wide x 8.56" deep | 38.5" to 46" | 325 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 6 Step - Black bracket MFG Part Number: A7836 |
7.5 | 20" wide x 8.56" deep | 46.5" to 54" | 325 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 3 Step - White bracket MFG Part Number: A7843 |
7.5 | 20" wide x 8.56" deep | 23.5" to 30.5" | 375 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 4 Step - White bracket MFG Part Number: A7844 |
7.5 | 20" wide x 8.56" deep | 31" to 38" | 375 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 5 Step - White bracket MFG Part Number: A7845 |
7.5 | 20" wide x 8.56" deep | 38.5" to 46" | 325 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - 6 Step - White bracket MFG Part Number: A7846 |
7.5 | 20" wide x 8.56" deep | 46.5" to 54" | 325 lbs† | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - Upgrade kit for standard GlowSteps - Black bracket only†† MFG Part Number: A7810 |
- | - | - | - | |||||
| SMARTSTEP® GlowStep Stow N' Go Step - Upgrade kit for standard GlowSteps - White bracket only†† MFG Part Number: A7820 |
- | - | - | - | |||||
| Footnotes: | |||||||||
| †With use of Torklift GlowGuide. Otherwise 3-4step MAX CAP 350lbs / 5-6 MAX CAP 300lbs | |||||||||
| ††Bracket only to upgrade standard GlowSteps will fit both 8” deep and 6” deep GlowSteps. Stow N’ Go upgrade kits only work with applications ranging 3-6 steps. Will not work with 2-step GlowStep units. All Terrain Landing Gear not included. | |||||||||

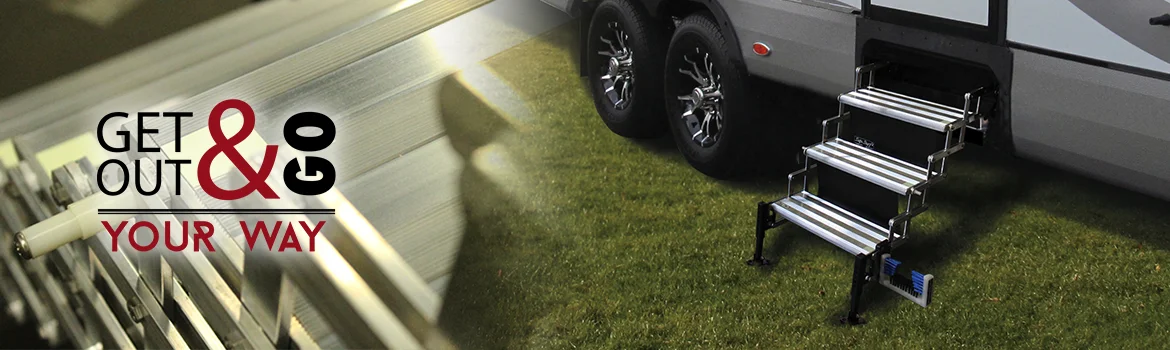

GLOWSTEP REVOLUTION® Specifications
|
GLOWSTEP REVOLUTION® with 8" x 22.25" Steps
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Description / Part Number | Width between factory mounting brackets (A) | Height from top of step opening to ground (B) | Height from top of step opening to bottom of stored steps (C) | Weight Capacity | Notes | ||||
|
Add-A-Step (for A8002-A8005) |
27.5" | N/A | N/A | N/A | †, †† | ||||
| 2 Step MFG Part Number: A8002 |
27.5" | 18.5" to 24" | 11.5" to 12.5" | 375lbs |
††† | ||||
| 3 Step MFG Part Number: A8003 |
27.5" | 25.5" to 32" | 13.75" to 14.75" | 375lbs |
††† | ||||
| 4 Step MFG Part Number: A8004 |
27.5" | 32.5" to 40" | 16" to 17" | 375lbs |
††† | ||||
| 5 Step MFG Part Number: A8005 |
27.5" | 39.5" to 48" | 18.25" to 19.25" | 325lbs |
††† | ||||
| 6 Step MFG Part Number: A8006 |
27.5" | 46.5" to 56" | 20.5" to 21.5" | 325lbs |
†††, *,** |
||||
| Add-A-Step (For A8102-A8105) MFG Part Number: A8101B | 25" | N/A | N/A | N/A | †, †† | ||||
| 2 Step MFG Part Number: A8102 |
25-25.5" | 18.5" to 24" | 11.5" to 12.5" | 375lbs | ††† | ||||
| 3 Step MFG Part Number: A8103 |
25-25.5" | 25.5" to 32" | 13.75" to 14.75" | 375lbs | ††† | ||||
| 4 Step MFG Part Number: A8104 |
25-25.5" | 32.5" to 40" | 16" to 17" | 375lbs | ††† | ||||
| 5 Step MFG Part Number: A8105 |
25-25.5" | 39.5" to 48" | 18.25" to 19.25" | 325lbs | ††† | ||||
| 6 Step MFG Part Number: A8106 |
25-25.5" | 46.5" to 56" | 20.5" to 21.5" | 325lbs | †††, *,** | ||||
|
† Do not use Add-A-Step Kit to convert a six-step to a seven-step. †† All Terrain Landing Gear not included. ††† With use of Torklift GlowGuide. Otherwise 2-4step MAX CAP 350lbs / 5-6 MAX CAP 300lbs. * The GLOWSTEP REVOLUTION® is available from two to six steps. The six step is specifically available for side-entry truck campers that have a larger opening to the ground. Most travel trailers, toy haulers and 5th wheels will only require two to five step applications. **GlowGuide handrail works with the 6-step GLOWSTEP REVOLUTION® but must be installed on the second step from the bottom. |
|||||||||

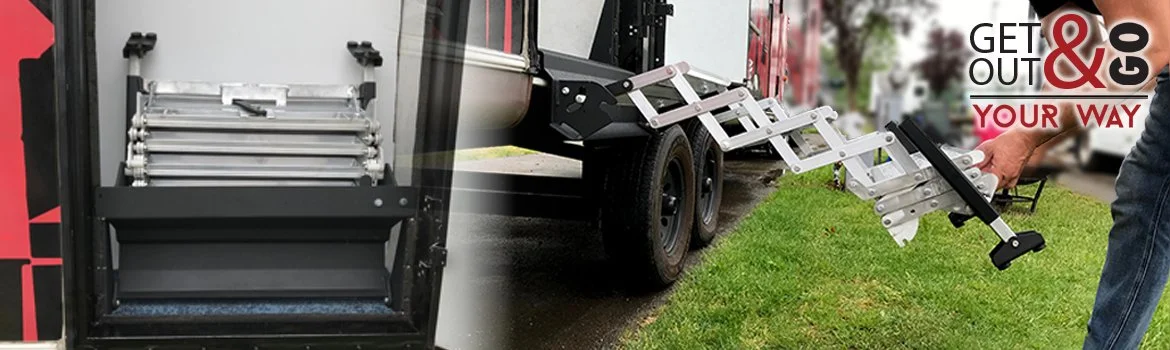

| SMARTSTEP® GLOWSTEP REVOLUTION® Uprising Step System with 8" x 22.25" Steps | ||||||||
|---|---|---|---|---|---|---|---|---|
| Description / Part Number | Width between door frame flanges (A) | Height from ground to outside bottom corner of door threshold (B) | Step width distance in from door frame (C) | Bracket distance in from door frame (D) | Height from bottom of steps to top of All Terrain Landing Gear (E) | Overall Height (F) | Weight Capacity | Notes |
| 3-step Part Number: A9003 |
28" | 19-7/8" to 27-3/8" | 12-1/2" | 5" | 8-3/8" | 20-1/2" | 375 lbs | ††† |
| 4-step Part Number: A9004 |
28" | 27-3/8" to 34-7/8" | 12-1/2" | 5" | 10-1/2" | 22-1/2" | 375 lbs | ††† |
| 5-step Part Number: A9005 |
28" | 34-7/8" to-42 3/8" | 12-1/2" | 5" | 11-3/16" | 24-7/10" | 325 lbs | ††† |
| 6-step Part Number: A9006 |
28" | 42-3/8" to 49-7/8" | 12-1/2" | 5" | 11-3/16" | 26-4/5" | 300 lbs | ††† |
| 3-step Part Number: A9303 |
26" | 19-7/8" to 27-3/8" | 12-1/2" | 5" | 8-3/8" | 20-1/2" | 375 lbs | ††† |
| 4-step Part Number: A9304 |
26" | 27-3/8" to 34-7/8" | 12-1/2" | 5" | 10-1/2" | 22-1/2" | 375 lbs | ††† |
| 5-step Part Number: A9305 |
26" | 34-7/8" to 42-3/8" | 12-1/2" | 5" | 11-3/16" | 24-7/10" | 325 lbs | ††† |
| 6-step Part Number: A9306 |
26" | 42-3/8" to 49-7/8" | 12-1/2" | 5" | 11-3/16" | 26-4/5" | 300 lbs | ††† |
| 3-step Part Number: A9103 |
24" | 19-7/8" to 27-3/8" | 12-1/2" | 5" | 8-3/8" | 20-1/2" | 375 lbs | ††† |
| 4-step Part Number: A9104 |
24" | 27-3/8" to 34-7/8" | 12-1/2" | 5" | 10-1/2" | 22-1/2" | 375 lbs | ††† |
| 5-step Part Number: A9105 |
24" | 34-7/8" to 42-3/8" | 12-1/2" | 5" | 11-3/16" | 24-7/10" | 325 lbs | ††† |
| 6-step Part Number: A9106 |
24" | 42-3/8" to 49-7/8" | 12-1/2" | 5" | 11-3/16" | 26-4/5" | 300 lbs | ††† |
| 3-Step Part Number: A9403 | 30" | 19-7/8” To 27-3/8” | 12-½” | 5” | 8-3/8” | 20-½” | 375 Lbs | ††† |
| 4-Step Part Number: A9404 | 30” | 27-3/8” To 34-7/8” | 12-½” | 5” | 10-½” | 22-½ | 375 Lbs |
††† |
| 5-Step Part Number: A9405 | 30” | 34-7/8” To 42-3/8” | 12-½” | 5” | 11-3/16” |
24-7/10” |
325 Lbs |
††† |
| 6-Step Part Number: A9406 | 30" | 42-3/8” To 49-7/8” | 12-½” | 5" | 11-3/16” |
26-4/5” |
300 Lbs |
††† |
††† With use of Torklift GlowGuide. Otherwise, 3-4 step MAX CAP 350 lbs / 5-6 step MAX CAP 300 lbs
*The SMARTSTEP® GLOWSTEP REVOLUTION® Uprising is available from three to six steps.
Step into Confidence with the Torklift SmartStep® GlowStep Step Line - The Ultimate RV and Camper Step System.
Discover the difference that true stability and safety make with Torklift SmartStep® GlowStep Step Systems - the original glow-in-the-dark RV steps engineered for every adventure. Whether you're upgrading your RV camper steps, adding durable camper stairs to your truck camper st up, or searching for steps for your RV that perform like home stairs, Torklift delivers a solution built for confidence on any terrain.
Each SmartStep® GlowStep RV step system is built in the USA from corrosion-resistant, aircraft-grade aluminum and stainless steel, designed to handle any terrain - from campsites to steep off-road conditions. The patented, fully adjustable and ground-supported technology connects your RV entry step or truck camper step directly to the ground, eliminating dangerous shake, bounce, or flex often found in traditional hanging steps.
GlowStep's self-illuminating SureGrip treads make entry and exit effortless and secure, even in low-light environments. The steps feature comfortable, home-like spacing, modular adaptability, and precision adjustability, making them ideal for travel trailers, fifth wheels, and truck campers alike.
From setup to storage, every Torklift camper step system is engineered for long-term durability and ease of use. Backed by Torklift's Legendary Lifetime Warranty, the SmartStep® GlowStep line of RV steps isn't just an accessory - it's a lifetime investment in quality, safety, and American craftsmanship.
