SuperHitch Magnum

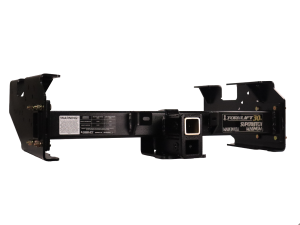

The SuperHitch® Magnum 30K is rated at 3,000 lbs tongue weight, 30,000 lbs pull with weight distribution and 20,000 lbs pull and 2,500 lbs tongue weight carrying.

Most applications don't require drilling and are compatible with industry standard ball mounts.

It uses our patented dual receiver design (2-1/2" upper and 2" lower) high penetration dual shield welding and includes hardened reinforced hitch pin locations. The SuperHitch Magnum 30K has a Legendary Lifetime Warranty and is proudly made in the USA.

SuperHitch Magnum Features:

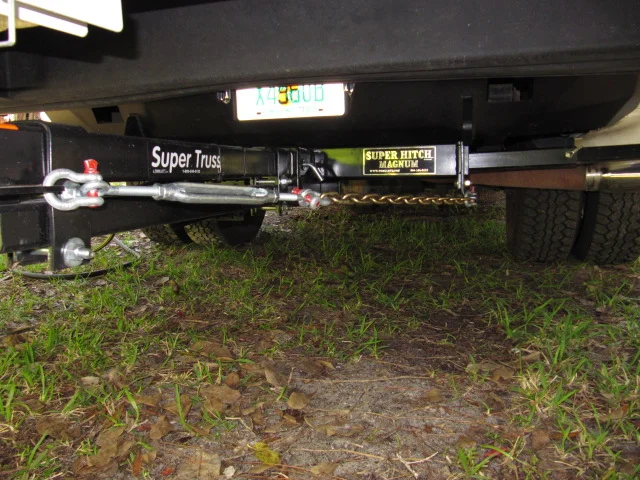

  • SuperHitch 30K frame mounted receiver rated up to 30,000 lbs pull and 3,000 lbs tongue weight with weight distribution (20,000 lbs pull and 2,500 lbs tongue weight carrying) in either the upper or lower receivers (When used without SuperTruss extension). Extension towing capacity up to 12,000 lbs. with 48" SuperHitch SuperTruss receiver extension†

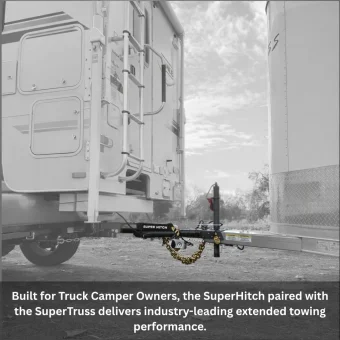

  • SuperTruss Extensions available in 8 different lengths from 21” to 48” (Extensions available to 60") (Sold Separately)
  • Both the SuperHitch Magnum 30K frame mount receiver and the SuperTruss receiver extensions use Industry standard 2” x 2” ballmounts
  • Eliminates the need for two ball mounts ††
  • Specific Torklift tie down fits are available for the SuperHitch Outlaw Series
  • Legendary Lifetime Warranty
  • Proudly made in the USA

†12,000 lb. pulling capacity, 1,200 tongue wt. achieved only when used with weight distribution type system. See Dealer for details, Weight carring capacity on 48” extension, 6,000 lb. pull, 600 lb. tongue wt. Consult your vehicle owners manual for specific towing capacity. Your truck and trailer weight cannot exceed your vechile manufacturers towing, cargo, or GCVWR.

†† (Camper on, camper off, height variance) obtained by using the ball mount in either upper or lower SuperHitch receiver.


SuperHitch Magnum 30k Application Guide


HITCH MAX TRAILER WEIGHT (LBS.) MAX TONGUE WEIGHT (LBS.)
WEIGHT DISTRIBUTING 30,000 3,000
WEIGHT CARRYING 20,000 2,500
CONSULT OWNERS MANUAL FOR SPECIFIC VEHICLE CAPACITY | DO NOT EXCEED YOUR TRUCKS GVWR OR GVCWR
YEAR MAKE/
MODEL
BED
LENGTH
PART # NOTES HOLES TO DRILL
FORD - SUPERHITCH MAGNUM 30K
1999-2016 F250 / F350 / F450 Factory Bed All Bed Lengths



1c, 5 NO DRILL
2000-2016 F350 / F450 / F550 Cab And Chassis N/A

f1003-30

1c, 5 REQUIRED

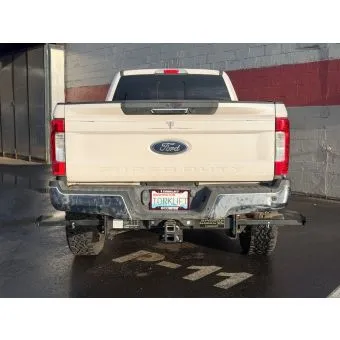

2017 F250 / F350 / F450 Super Duty With Factory Bed Long and Short

f1008-30

 1c  NO DRILL
DODGE RAM / STERLING - SUPERHITCH MAGNUM 30K
2007-2012 STERLING / 3500 / 4500 / 5500 HD Cab & Chassis / Quad Cab & Regular Cab N/A

d1103-30

1c, 2, 3 NO DRILL

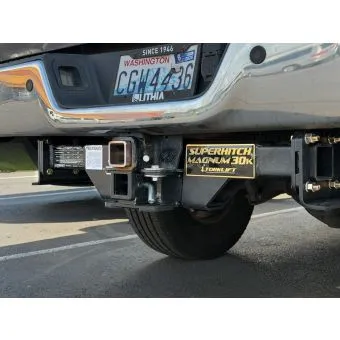

2003-2012 2500 / 3500 HD Long And Short Bed With Factory Hitch

d1102-30

1c,3, 2H NO DRILL
2013 2500 / 3500 HD  Long And Short Bed With Factory Hitch (Details)

d1104-30

1c, 2, 3, 2H NO DRILL
2014-2016 2500 HD Long And Short Bed With Factory Hitch

d1107-30

1c, 2, 3, 2H NO DRILL
2014-2016 3500 HD  Long And Short Bed With Factory Hitch

d1104-30

1c, 2, 3, 2H NO DRILL
CHEVROLET - SUPERHITCH MAGNUM 30K
2001-2007 2500 HD/3500 HD Classic Short

c1204-30


1c, 4
NO DRILL
2001-2010 2500 HD / 3500 HD Classic & New Body Long

c1205-30

1c NO DRILL
2007  Kodiak Cab & Chassis 8' Bed

c1207-30

1c  NO DRILL
2007-2010 2500 HD / 3500 HD / New Body Short

c1206-30

1c NO DRILL
2011-2014 2500 / 3500  Long

c1208-30

1c NO DRILL
2011-2014 2500 / 3500  Short

c1209-30

1c, 1, 6 NO DRILL
2015-2017 2500/3500 HD Long

c1211-30

1c NO DRILL

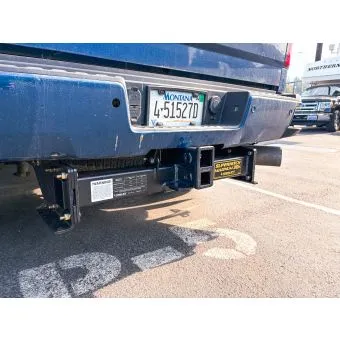

2015-2017 2500 / 3500 HD  Short

c1212-30

1c  NO DRILL
FOOTNOTES
1c   RATED AT 3,000 LBS TONGUE WEIGHT CAPACITY AND 30,000 LBS PULLING CAPACITY
1   SPARE TIRE HANGER AND TAILPIPE MODIFICATION MAY BE NECESSARY
2   REQUIRES MODIFICATION TO SPARE TIRE HANGER
3   WILL ONLY WORK WITH FACTORY WELDED ON RECEIVER HITCH
4   2007 FITS ONLY CLASSIC BODY STYLE

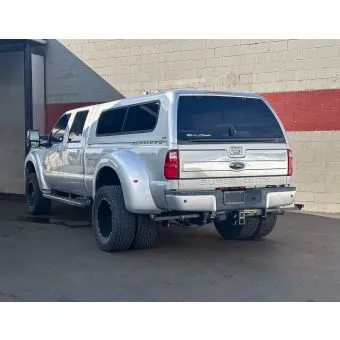

5   TRUCKS WITH 34½" FRAME USE F1003-30; TRUCKS WITH A 37½" REGULAR PICKUP FRAME USE A F1002-30
6   WORKS WITH VEHICLES THAT HAVE FACTORY RIMS AND TIRES 18" AND SMALLER
2H   COMES WITH A SINGLE RECEIVER THAT COMBINES WITH FACTORY HITCH
