If you’re looking to add a hitch to your 2026 Toyota RAV4 for bikes, cargo carriers, or light towing, the EcoHitch X7518S is one of the most straightforward installs you can do.

This is a clean, no-drill installation that mounts directly to factory points, making it a great project whether you’re a first-time DIYer or someone who’s installed a hitch before.

Let’s walk through it step-by-step.

Before You Start

Tools You’ll Need:

  • Socket set
  • Torque wrench
  • Basic hand tools

Installer Tip: A lift isn’t required for this install, but having a little extra clearance (ramps or a lift) can make positioning the hitch easier.

Step 1: Remove Factory Tow Hook & Locate Mounting Points

Start by prepping the mounting area.

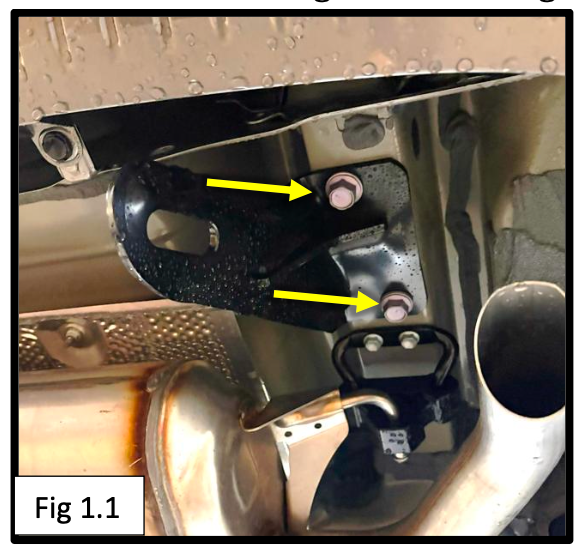

  • Remove the factory tow hook from the rear of the vehicle

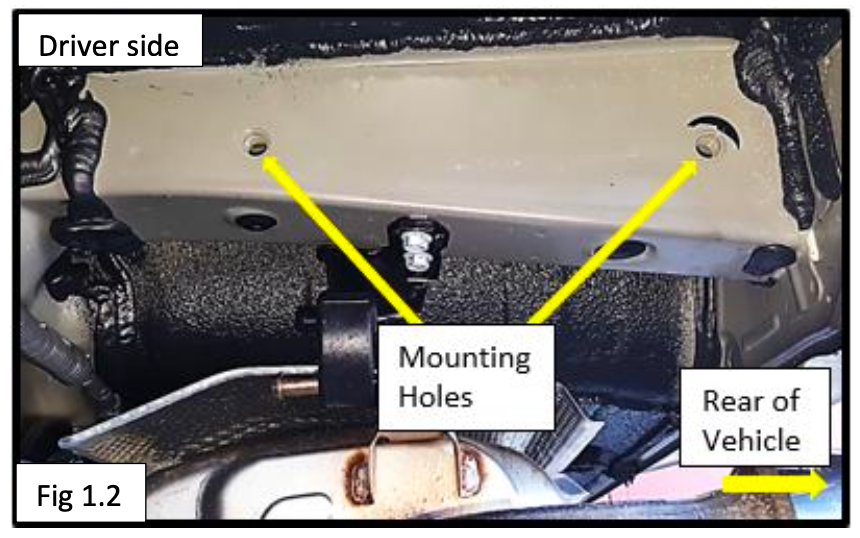

  • Locate the two mounting holes on each side of the frame

In some cases, these holes may be covered with small stickers, just peel those off to expose the threads.

Take a second to clean out the threads if needed, this makes installing bolts much smoother.

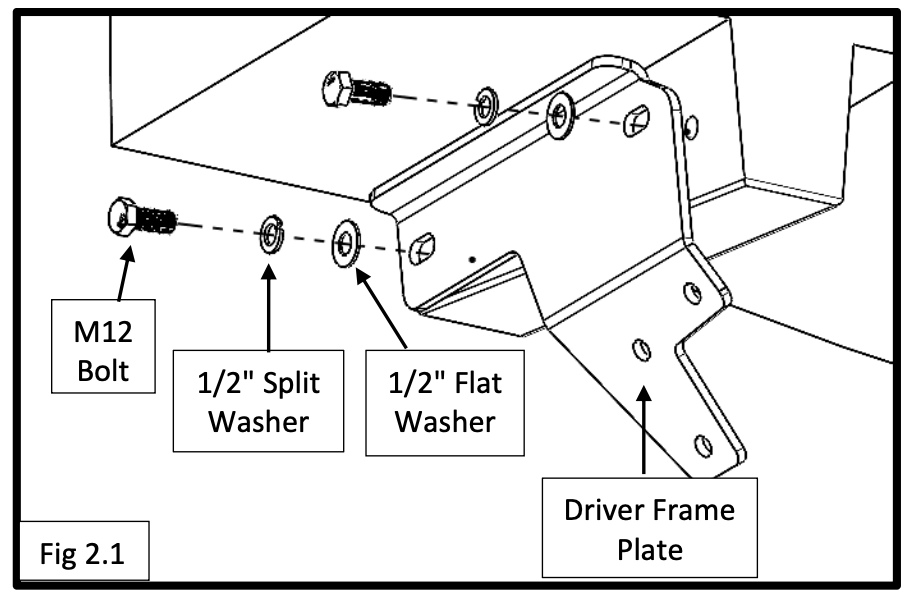

Step 2: Install the Frame Plates

Now we’ll mount the side plates that support the hitch.

  • Position the driver-side frame plate against the frame
  • Install using:
    • M12 bolts
    • 1/2" flat washers
    • 1/2" split lock washers
  • Repeat the same process on the passenger side

Leave all bolts loose for now, this allows room for alignment when installing the hitch.

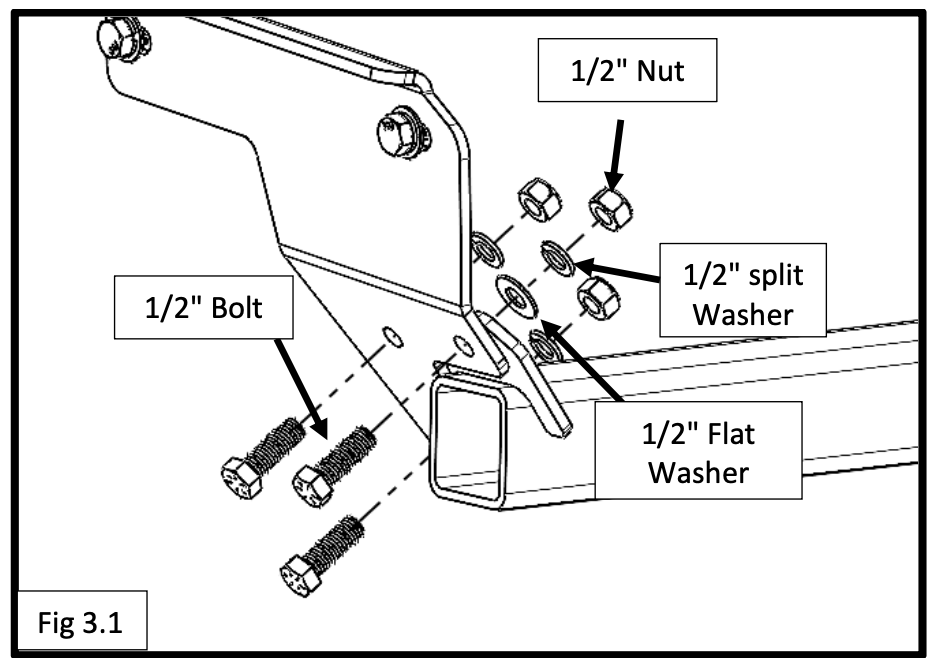

Step 3: Lift and Secure the Hitch

Now for the main event, getting the hitch into place.

  • Raise the EcoHitch cross tube into position between the frame plates
  • Align the holes in the hitch with the frame plate mounting points
  • Insert the 1/2" hardware:
    • 1/2" bolts
    • 1/2" flat washers
    • 1/2" split lock washers
    • 1/2" nuts

Once everything is aligned:

Torque Specs:

  • M12 hardware: 70 ft-lbs (95 Nm)
  • 1/2" hardware: 70 ft-lbs (95 Nm)

Tighten everything evenly to ensure the hitch sits square and secure.

Installation Complete

That’s it, you’re done.

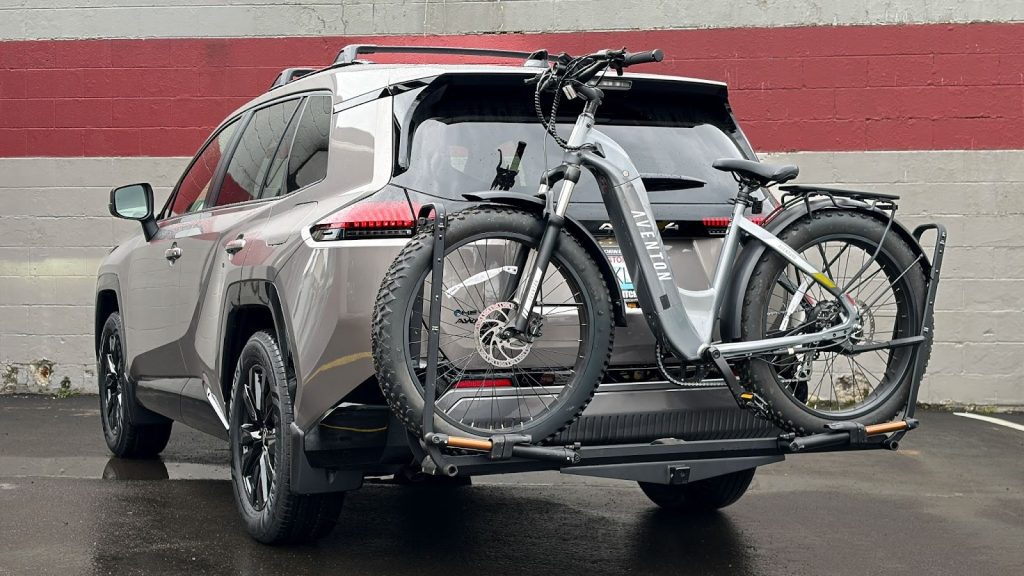

The EcoHitch X7518S is now fully installed on your 2026 Toyota RAV4. With its clean fit and solid mounting points, you’re ready to start using your hitch for:

  • Bike racks
  • Cargo carriers
  • Light towing
