SUPERTRUSS EXTENSION-36"- E1536

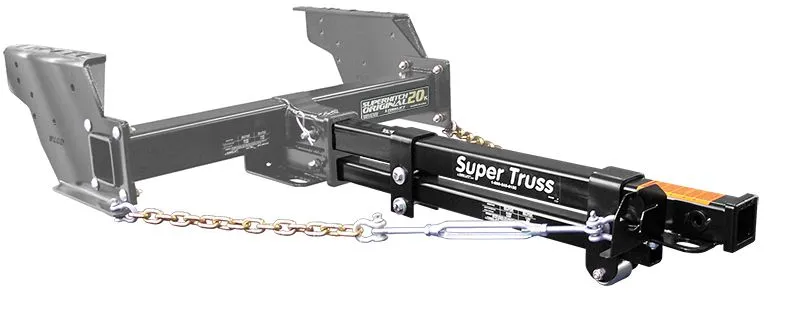

SuperTruss Extension allows you to tow while using a camper with overhang. It comes in eight lengths from 21” to 60”
More Accessories:
- SKU
- E1536
$675.17
Shipping Info
All Torklift products ship in 5 business days or less.
If you order multiple products, they may ship from different warehouses in separate shipments
Frequently Purchased Together
SuperTruss Extension allows you to tow while using a camper with overhang. It comes in eight lengths from 21” to 60”
E1536 Weight Carry
-
6,500 lbs maximum pull weight
-
650 lbs maximum tongue weight
E1536 Weight Distribution
-
12,000 lbs maximum pull weight
-
1,200 lbs maximum tongue weight
How to Install SuperTruss Extension
Recommended for Safety: When hauling a truck camper, Torklift strongly recommends StableLoad to help support the load, reduce sway and body roll, and promote safer, more controlled handling on the road.
SuperTruss Extensions Application Guide
| CAPACITIES DEAD WEIGHT RATING |
CAPACITIES WEIGHT DISTRIBUTING (REQUIRED) |
||||
|---|---|---|---|---|---|
| LENGTH | GTW(F1) / GVW(F2) | GTW(F1) / GVW(F2) | Part # | Wire Harness# | Extended Power# |
| 21" | 750 / 7,500 | 1,400 / 14,000 | e1521 | w6021 | - |
| 24" | 750 / 7,500 | 1,400 / 14,000 | e1524 | w6024 | - |
| 28" | 750 / 7,500 | 1,200 / 12,000 | e1528 | w6028 | - |
| 32" | 650 / 6,500 | 1,200 / 12,000 | e1532 | w6032 | - |
| 36" | 650 / 6,500 | 1,200 / 12,000 | e1536 | w6036 | a7736† |
| 42" | 600 / 6,000 | 1,200 / 12,000 | e1542 | w6042 | a7736† |
| 48" | 600 / 6,000 | 1,200 / 12,000 | e1548 | w6048 | a7736† |
| 60" | 500 / 5,000 | 1,000 / 10,000 | e1560 | w6060 | a7736† |
| F1 - Trailers Gross Tongue Weight (GTW) when fully loaded F2 - Trailers Gross Vehicle Weight (GVW) when fully loaded |
|||||
| Footnotes:Consult owners manual for specific vehicle towing capacity(WARNING: The higher capacities are obtained only with the use of the load equalizing hitch. Exceeding these dead weight capacities, without using a load equalizing hitch, may result in damage to the hitch or your vehicle.Caution: Weight distributing hitch is mandatory on larger trailers† works with 36" - 60" supertruss extensions (SUPER HITCH® F1005H- Requires minimum 48" Supertruss Extension) Minimum length requirments due to interference with lateral support saftey chains. | |||||
