Torklift ApexAnchors™ T6308 - Rear In-Bed Frame-Mounted Payload Anchors for 1995-2004 Toyota Tacoma

Why the Factory Anchor Points in Your Truck Bed Are Not Engineered for a Truck Camper

A significant load does not simply sit still in the truck bed. As the truck accelerates, brakes, turns and travels over uneven surfaces, slide-in truck campers, motorcycles, ATVs and other substantial payloads can apply changing forces in multiple directions. Loads with a high center of gravity make a secure, stable foundation even more important.

ApexAnchors move that securement foundation to the truck frame. The system bolts directly to the structural frame and brings accessible anchor points up inside the bed, where the load can be secured without relying on standard cargo points as the primary connection. The cargo anchor points are designed for lightweight, temporary loads and not designed to accommodate heavy, dynamic loads like truck campers.

For slide-in truck campers, that frame-mounted foundation is especially valuable because camper shift can occur laterally and longitudinally as the truck moves. With the correct front and rear ApexAnchors and properly configured spring-loaded turnbuckles, the truck camper is secured through a complete four-point frame-mounted system.

ApexAnchors® Features

• Frame-Mounted Load Path: ApexAnchors bolt directly to the truck frame, not to the bed floor, bed rails, or any secondary structure. By routing the load directly into the frame, ApexAnchors distribute the forces of significant dynamic loads through the strongest structural members of the truck. This is the fundamental engineering principle that separates ApexAnchors from ordinary bed-mounted anchoring solutions.
• 2,000 Pounds Per Anchor Point: Each anchor point is independently rated for 2,000 pounds. For truck camper applications, the correct front and rear ApexAnchors work with properly tensioned spring-loaded turnbuckles to create a complete four-point frame-mounted tie-down system.

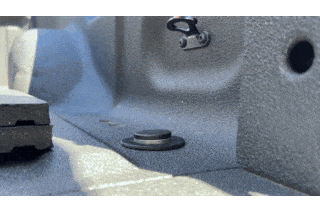

• Retractable Flush-Mount Design: When the anchors are not needed, the ApexAnchors points retract flush with the surface of the truck bed. The bed returns to a clean, uncluttered, back-to-stock appearance. No permanent protrusions. No hardware to remove. No compromises to the daily utility of the truck bed.
• Preserved Ground Clearance: Because the anchor points are mounted internally and retract into the bed floor, the vehicle's original ground clearance remains unchanged. That is especially valuable for overlanding, forest service roads, rough campsites, and backcountry access.
• Eliminates Camper Shift: For slide-in truck camper applications, ApexAnchors provide a frame-mounted foundation designed to control the lateral and longitudinal movement known as camper shift. That movement can damage the truck bed, camper structure, and the connection between them while compromising the handling and stability of the combined vehicle.
• Tailor-Made Vehicle Fitment: ApexAnchors are not universal adapters. They are engineered to the specific frame geometry, mounting locations, and bed dimensions of the truck. Every bracket angle, bolt pattern, and access-hole location is designed for the application. The result is a bolt-on installation with no fabrication, no shimming, and no improvisation required.
• Built for Significant Dynamic Loads: ApexAnchors provide internal frame-mounted anchor points for slide-in truck campers, motorcycles, ATVs, and other substantial loads where a secure, stable foundation is critical.
• Armor Pro Finish: Torklift’s exclusive premium finish, engineered to outperform traditional powder coat with a tougher barrier against rust, road salt, harsh weather, moisture, and everyday towing abuse. Armor Pro Finish is backed by 2,000+ hours of salt spray testing, up to 8x longer than standard powder coat finish. Learn more.
• Compatible with Leading Truck Camper Brands: ApexAnchors are designed for truck campers that route their tie-down connections inside the truck bed, including Cirrus, Four Wheel Campers, Travel Lite, Scout, and other brands using inboard anchor configurations. Confirm the exact truck and camper combination before installation.
• Simple, Bolt-On Installation: ApexAnchors mount directly to the truck frame with no welding or permanent modification to the structural members of the truck. Complete installation instructions and torque specifications are provided for the exact application.
• Aligned with Truck Manufacturer Guidance: ApexAnchors are engineered around the principle of transferring significant payload forces into the truck's structural frame rather than relying on the bed alone.
• Made in the USA: Designed, engineered, and manufactured by Torklift in the United States.
• Legendary Lifetime Warranty: Every set of ApexAnchors is backed by Torklift's Legendary Lifetime Warranty, reflecting the confidence behind the engineering and materials built into the system.

Recommended Use Cases

• Slide-in truck campers: Create frame-mounted in-bed anchor points that form the foundation of a complete four-point camper tie-down system and help control camper shift.
• Motorcycles: Provide secure internal frame-mounted anchor points for motorcycles and other powersports equipment carried in the truck bed.
• ATVs and powersports equipment: Create a stable frame-mounted anchor foundation for substantial recreational loads.
• High-center-of-gravity payloads: Add internal anchor points for significant dynamic loads where minimizing unwanted movement is especially important.
• Overlanding and backcountry trucks: Preserve original ground clearance while keeping strong payload anchors accessible inside the bed.
• Daily-use trucks: Retract the anchor points flush when they are not needed so the truck bed remains clean and usable.

Inboard Vs. Outboard Comparison

Is ApexAnchors the Right System for Your Setup?

ApexAnchors (inboard) are designed for truck campers whose tie down straps connect inside the truck bed. If your camper uses external anchor points that connect outside the bed, Torklift's Outboard Frame-Mounted Tie Downs are the correct solution.

Not sure which system applies to your camper? Call 800-246-8132.

Choosing the Right ApexAnchors Setup

The right ApexAnchors setup starts with what you haul and how that load connects to the truck.

For slide-in truck campers: A complete four-point frame-mounted tie-down system requires the correct front ApexAnchors, matching rear ApexAnchors, and four spring-loaded turnbuckles. The front and rear ApexAnchors create the frame-mounted anchor points, while the spring-loaded turnbuckles maintain the connection between the truck and camper while allowing controlled movement as the vehicle travels.

This product page may cover only the front or rear ApexAnchors for a specific application. The matching ApexAnchors set can vary by truck year, configuration, and bed length, so confirm the complete system before ordering.

Torklift Central can help match:

• The correct front ApexAnchors
• The correct rear ApexAnchors
• Four compatible spring-loaded turnbuckles
• Any required adapters or application-specific components
• The correct fit for your truck, bed configuration, and camper

For motorcycles, ATVs, and other significant loads: ApexAnchors provide the frame-mounted in-bed anchor points, but the securement hardware and method should be selected for the specific payload. The four-point ApexAnchors and spring-loaded turnbuckle setup described above is specifically for truck camper applications.

Why Buy Through Torklift Central

Torklift Central is more than an online parts retailer and more than an installation shop. Our Kent, Washington Retail Product Development Center gives our team hands-on experience fitting, installing and working with the products we sell.

Ordering online? Use that experience to help confirm the correct ApexAnchors for your truck, bed configuration and payload before your order ships. For truck camper applications, we can help identify the correct front anchors, rear anchors, spring-loaded turnbuckles and any required components so you can build the complete system instead of discovering a missing part halfway through installation.

Local to Torklift Central? Bring the truck to our Kent facility and have our team confirm the fitment and professionally install the system. We can inspect the bed configuration, identify accessory conflicts, install the ApexAnchors and verify proper anchor operation before you leave.

Whether you install them yourself or have us install them for you, the goal is the same: the correct ApexAnchors, the correct application and a frame-mounted securement system you can trust.

Disclaimer: Before installing and using this tie-down system, review your vehicle's guidelines regarding payload usage. Some vehicles may have payload limits that make them unsuitable for carrying a camper or an additional payload. Torklift recommends consulting your vehicle's manufacturer to confirm you are within safe payload limits and to understand any potential warranty implications.

Torklift is not responsible for damage or warranty exclusions that may result if manufacturer payload limits are exceeded during the use or installation of these products.
