Your truck may already have factory heavy-load support under it. The overload springs on your truck decide which StableLoad to shop, and Lower Quick Disconnect is usually the place to start.
Many heavy-duty trucks already include factory heavy-load support in the form of upper or lower overload springs. StableLoad helps those factory overload springs start supporting the load sooner, so your truck handles a camper or heavy bed load with less sag, less sway, and more control.
If your truck has compatible lower overload springs, start by reviewing the Lower Quick Disconnect StableLoad. When a truck has both compatible upper and lower overloads, try the Lower Quick Disconnect first. It engages the lower overload spring sooner when you are loaded and disengages when you are not, so you keep a factory-like ride on unloaded days.
Upper StableLoad is the right product when your truck has a compatible upper overload spring system. Either way, the overload springs already on your truck decide what fits.
How StableLoad Puts Factory Overload Springs to Work
Most heavy-duty trucks have factory overload springs designed to activate under heavy loads. The factory leaves a gap between the main leaf spring pack and the overload spring, so those springs do not stay engaged during everyday unloaded driving. The tradeoff is that your truck has to sag several inches before the overload springs start helping.
StableLoad closes that gap and engages the overload springs sooner, so the suspension is working with you from the moment weight goes in the bed. Under a truck camper or heavy load, that means less rear-end sag, better steering control, reduced body roll and side-to-side sway, improved braking performance, and a more stable ride overall.
The difference between Lower and Upper StableLoad is simply which factory overload spring the product works with, and how it works with it.

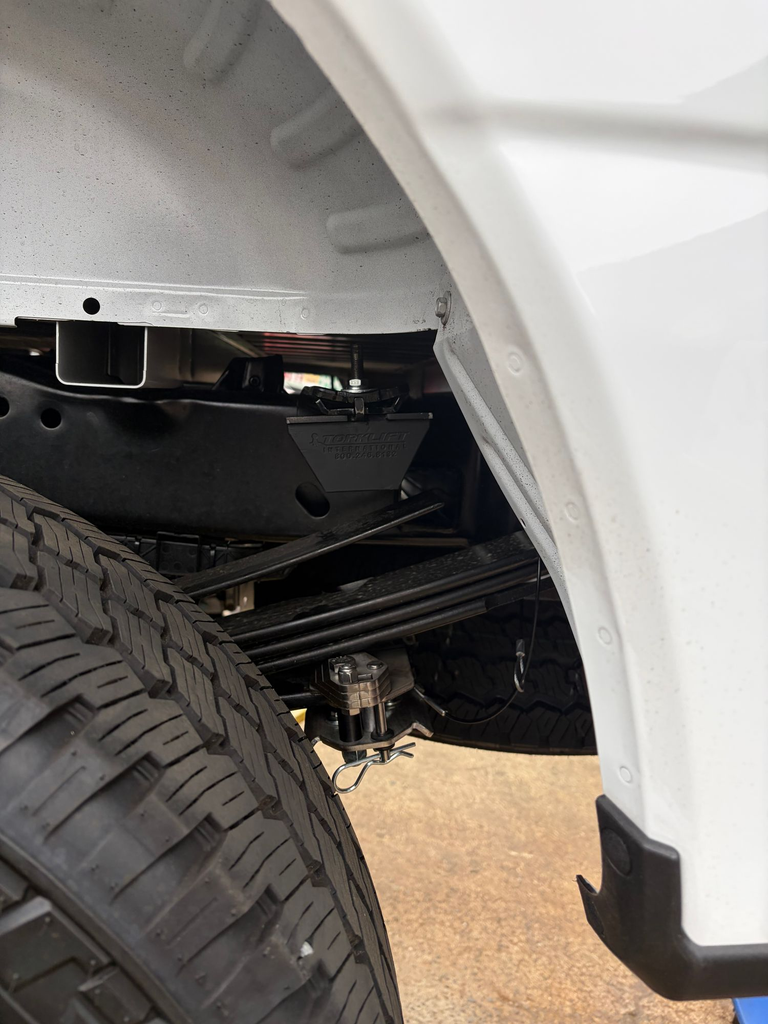

Lower StableLoad: Quick Disconnect Control
Lower StableLoad works with compatible lower overload leaf springs. Quick Disconnect versions switch on and off, which gives you two modes:
- Control Mode: StableLoad is engaged and activates the factory lower overload spring sooner for load support when you are hauling a camper or heavy load.
- Comfort Mode: StableLoad is disengaged, returning the truck to its factory suspension settings for a softer, more comfortable ride when unloaded.
That on/off ability is a major advantage over permanent suspension approaches that leave a stiff ride every day, whether you are loaded or not. If your truck spends part of the year carrying a camper and the rest of the year commuting empty, Lower Quick Disconnect lets you choose the right setting for the day.
Installation varies by application. Most Lower StableLoad applications use existing holes. Check the exact product and installation instructions for your truck before you order so you know what the install involves.
Upper StableLoad: Earlier Engagement From the Top
Upper StableLoad works with compatible upper overload spring systems. It replaces the smaller factory contact pad, sometimes called the bump-stop pad, with the StableLoad contact point. That causes the compatible upper overload spring to engage earlier as weight is added.
Upper StableLoad does not have the Lower Quick Disconnect on/off feature. There is no Comfort Mode or Control Mode switch on an Upper StableLoad. Once installed, it stays in place and engages the upper overload sooner every time the suspension compresses.
For trucks with a compatible upper overload system and no compatible lower path, Upper StableLoad is the product to shop.
Start With the Overload Springs Already on Your Truck
The fastest way to decide is to look under the truck. Overload springs are the additional leaves that sit separate from the main spring pack. Their location tells you which StableLoad path to review.
| Shopping factor | Lower StableLoad | Upper StableLoad | What to inspect on the truck |
|---|---|---|---|
| Overload spring it works with | Compatible lower overload leaf springs | Compatible upper overload spring systems | Whether your overloads sit above or below the main pack |
| How it works | Engages the factory lower overload spring sooner | Replaces the smaller factory contact pad so the upper overload engages earlier | The contact pad and gap between main pack and overload |
| On/off control | Quick Disconnect versions switch between Control Mode and Comfort Mode | No on/off feature; stays in place full time | How often you drive loaded vs. unloaded |
| Unloaded ride | Factory-like ride when disengaged | Earlier engagement remains in place if the upper overload springs are engaged | Your typical unloaded driving |
| Installation | Most applications use existing holes; some approved applications require drilling | Installs at the upper overload contact point | Existing holes or dimples, and the current instructions |
| Where to start | Recommended first when compatible lower overloads are present | The path for compatible upper overload systems | Your exact part number in Find Your Fit |
Can You Use Both Upper and Lower StableLoad?
Yes. Some owners run both Upper and Lower StableLoads. For most compatible trucks, though, the Lower Quick Disconnect alone is enough to deliver the improvement they are looking for.
The smart sequence is to start with the compatible Lower Quick Disconnect, haul your camper or typical load, and evaluate how the truck drives. If you want more support after that, adding Upper StableLoad is the next step to consider. That approach keeps you from buying more than you need and lets you keep the Comfort Mode advantage on unloaded days.
How Torklift Central Can Help You Shop
Torklift Central carries Lower and Upper StableLoad, and our retail team can help identify the correct part number for your truck's exact configuration using your year, make, model, cab style, bed length, and suspension photos. As a towing equipment provider focused on truck camper and heavy-load setups, we can also schedule installation in Kent, WA, where a technician will walk you through the setup at your appointment.
Key Takeaways
- StableLoad helps your truck's factory overload springs engage sooner for less sag, less sway, and more control under load.
- If your truck has compatible lower overload springs, start with the Lower Quick Disconnect StableLoad.
- Lower Quick Disconnect switches between Control Mode for load support and Comfort Mode for a factory-like unloaded ride.
- StableLoad does not increase payload, GVWR, GAWR, or tow rating and neither does any aftermarket suspension upgrade.
Frequently Asked Questions
Should I buy Lower or Upper StableLoad?
It depends on the overload springs your truck has. If it has compatible lower overload springs, start with the Lower Quick Disconnect. If it has a compatible upper overload system only, Upper StableLoad is your path. Find Your Fit confirms the exact part number.
Which StableLoad should I install first?
When your truck has both compatible upper and lower overloads, Torklift's current guidance recommends trying the Lower Quick Disconnect first, then evaluating whether you want more support before adding Upper.
Which StableLoad can be disengaged?
Lower Quick Disconnect StableLoad versions can be engaged and disengaged.
Can I use Upper and Lower StableLoads together?
Yes, some owners use both. Many trucks get the support they want from the Lower Quick Disconnect alone, so start there and add Upper only if you want more support.
Is every Lower StableLoad no-drill?
Most Lower StableLoad applications use existing holes. Review the installation instructions for your exact part number.
Do StableLoads increase payload?
No. StableLoad does not increase payload, GVWR, GAWR, tire ratings, or tow rating. Keep your loaded weight within the truck manufacturer's ratings.
Ratings notice: StableLoad does not change the vehicle manufacturer's payload, GVWR, GAWR, GCWR, tire ratings, or towing rating. Stay within those ratings, respect the lowest-rated component in your setup, and follow your owner's manual and the current Torklift product instructions.
Look at the overload springs on your truck, confirm your part number in Find Your Fit, and shop StableLoad at Torklift Central. Questions about Lower vs Upper? Call 253-854-1832 and a retail specialist will help you choose.
